A2106 Linear High Bay

A2102 LED Linear High Bay is made of heavy-duty anodized, extruded aluminum so it can handle whatever you can dish out. The finely-engineered fixture dissipates heat and keeps the LEDs inside cool and right for years and years.

Widely used in Airport, Auto Dealership, Education, Healthcare, Distribution, Gymnasiums, Industrial & Warehouse, Recreation & Public Venues.

Product Display

PARAMETER

DOWNLOAD

Product Tags

Construction

Dimension 2FT,3FT,4FT,5FT
Housing Aircraft Aluminum
Finish Silver (standard), White, Black
Mounting Surface mount brackets (standard),Wall mount and suspension sets optional
Cover Lens
IP Rating IP65
IK IK10

ELECTRICAL

Available Watts 80W, 120W, 150W, 200W
Input Voltages AC100-277V 50/60Hz standard
Power Factor >0.95
THD <15%

OPTICAL & PERFORMANCE

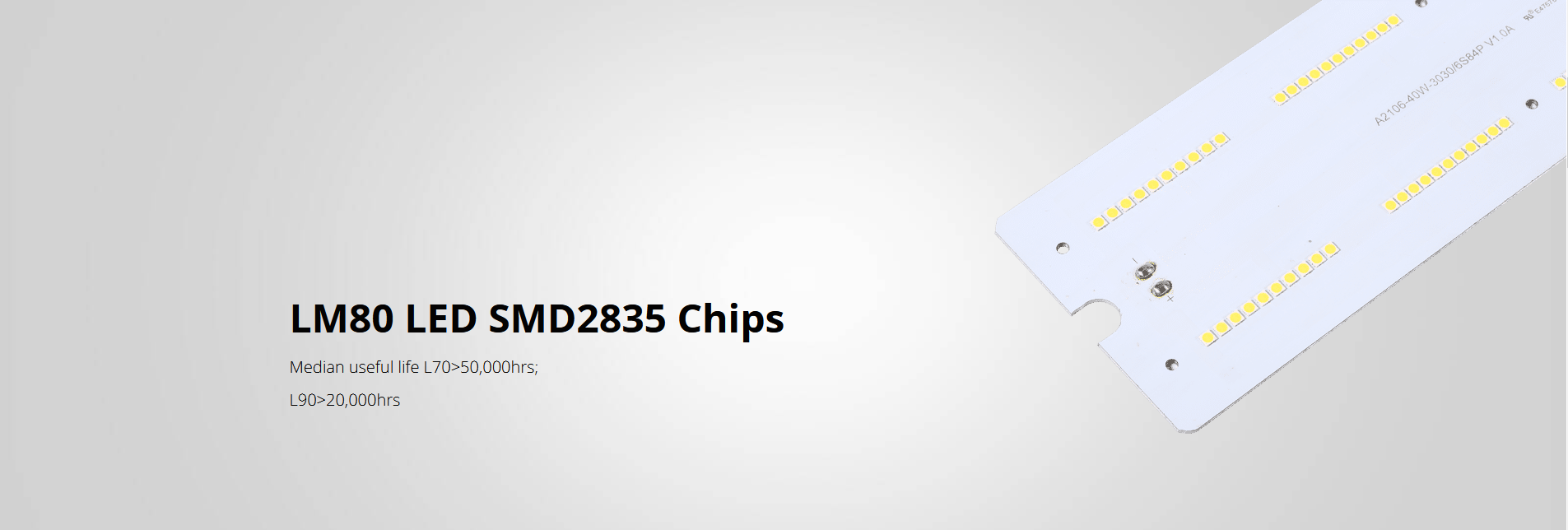

LED Chips LM80/2835 Led Chips
Luminous Efficacy 120/140/160 LM/W
Lumen Output 10400~30000LM
CCT 3000/4000/5000/6000/6500K
CRI >80
Beam Angles 120°

OPTIONS

Dimming 0-10V| Dali Dimming

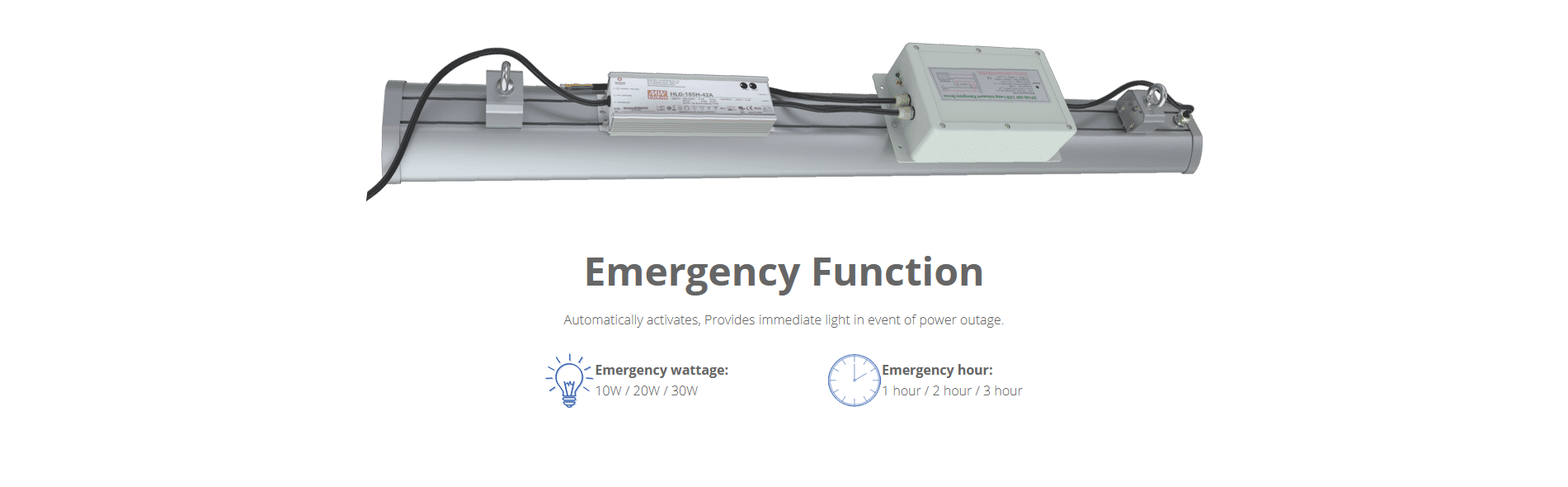

Function Microwave Sensor| Emergency
Input Voltages AC200~240V

General

Lighting Even illumination; Non-glare
Lifespan 50,000HRS
Warranty 5 Years
Operating Temp -20°C ~ +45°C
Storage Temp -30°C ~ +70°C
Certifications UL,DLC, CE, RoHS

Parameter

Model No. Wattage Voltage CCT Lumens Dimension
A2106-600-80W 80W AC100-240V 3000~6500K 10400/12000LM 600*140*55 MM
A2106-900-120W 120W AC100-240V 3000~6500K 15600/18000LM 900*140*55 MM
A2106-1200-150W 150W AC100-240V 3000~6500K 19500/22500LM 1200*140*55 MM
A2106-1500-200W 200W AC100-240V 3000~6500K 26000/30000LM 1500*140*55 MM

photometrics

2106

TECHNICAL SPECIFICATIONS

Housing Aircraft Aluminum
Finish Silver
Mounting Surface mount brackets
Cover Lens

ELECTRICAL SPECIFICATIONS

LED Engine High Quality 3030 Chips
Available Watts 80W, 120W, 150W, 200W
Power Factor >0.95
Ambient Temperature -20°C ~ +50°C
Available Voltages AC100-277V 50/60Hz standard, AC277-480V 50/60Hz available

OPTICAL & PERFORMANCE SPECIFICATIONS

Lumen Output 80W: 10400lm |120W: 15600lm | 150W: 19500lm | 200W: 26000lm
IP Rating IP65
Beam Angles 60° 90°
CRI >80
Efficiency 130 ± 5%lm/w
CCT 3000~6500K
Certifications UL/cUL(E485380), DLC V4.2 premium

OPTIONS

Body color White, Black
CRI >90
UGR <19
Function 1-10V | Dali | Microwave Sensor & Photocell | Emergency
Voltage AC277-480V 50/60Hz

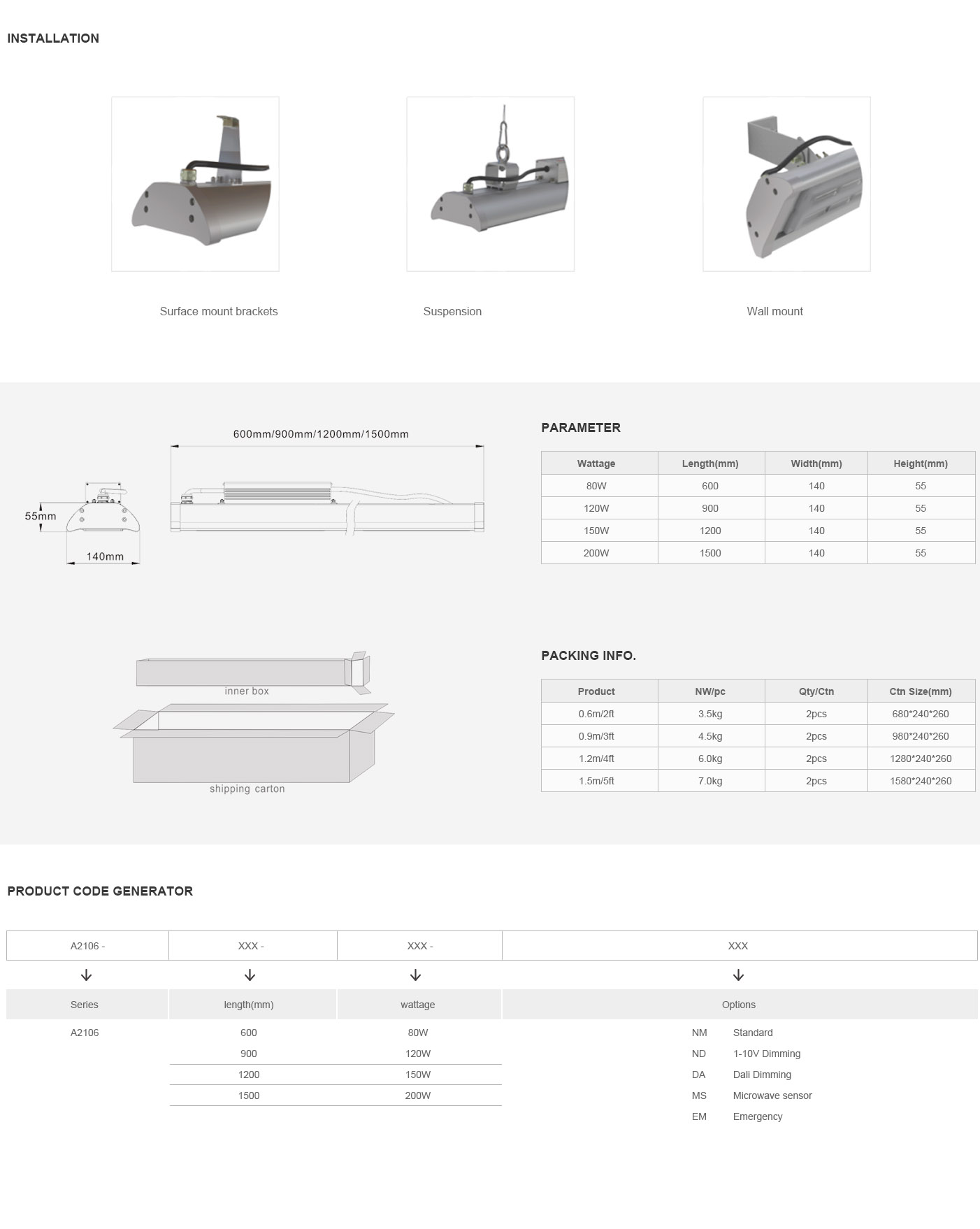

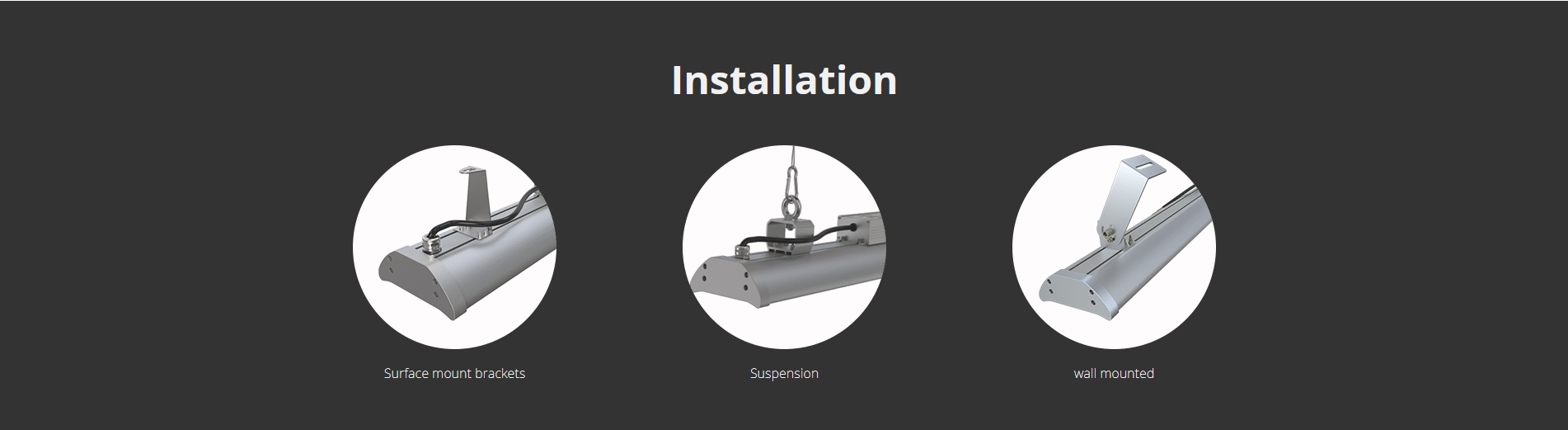

Installation Suspension, Wall mount

ADVANTAGES

Lighting Even illumination; Non-glare

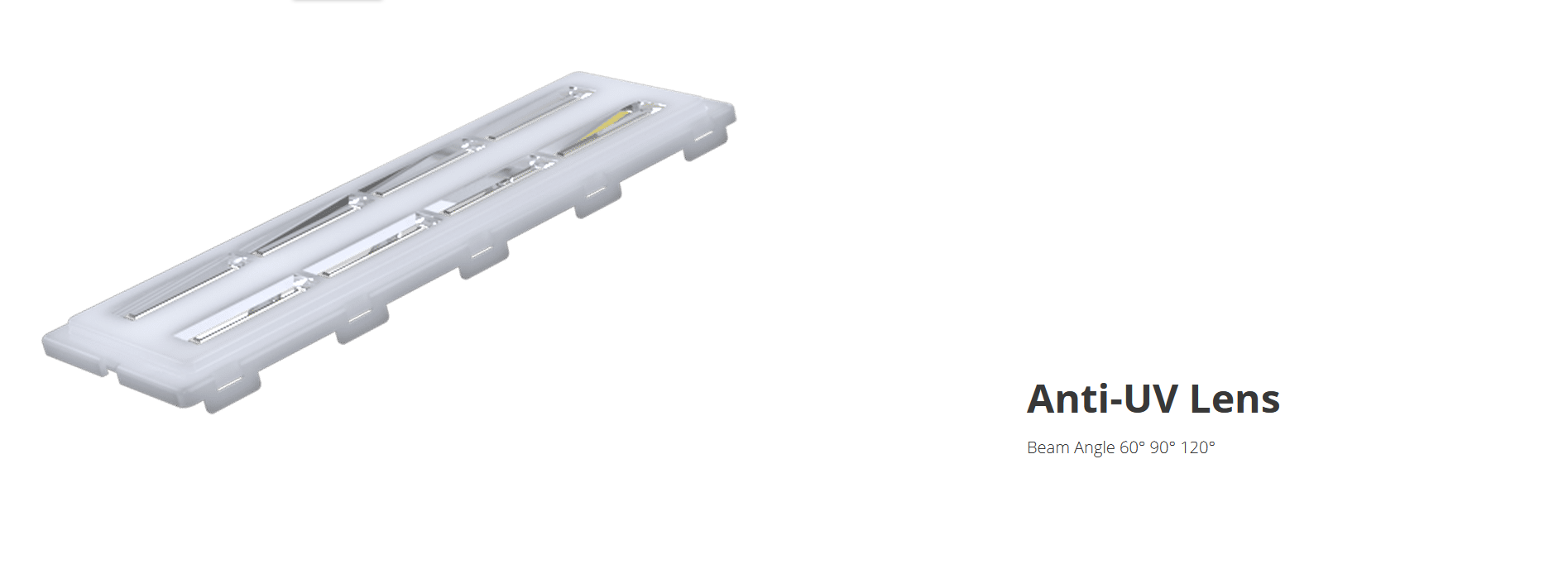

Cover UV protection
Cost Cost effective
IP Rating IP65
Driver MeanWell or Inventronics driver, flicker-free
Warranty 5 Years warranty
Installation Easy to install, firm & fast

DIMENSION

Wattage Length(mm) Width(mm) Height(mm)
80W 600 140 55
120W 900 140 55
150W 1200 140 55
200W 1500 140 55

a2001-dim-01

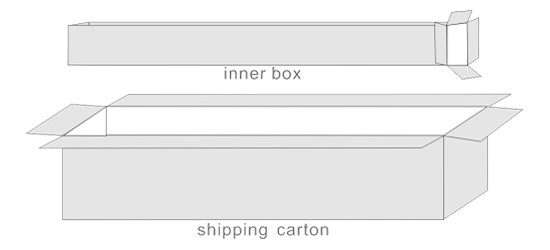

PACKING INFO

Product NW/pc GW/Ctn Qty/Ctn Ctn Size(mm)
0.6m/2ft 4kg 9kg 2pcs 660*210*300
0.9m/3ft 5kg 11kg 2pcs 960*210*300
1.2m/4ft 6.5kg 14kg 2pcs 1260*210*300
1.5m/5ft 7.5kg 16kg 2pcs 1560*210*300

a2001-dim-02

PHOTOMETRICS

a2001-24g-metrics-01 a2001-24g-metrics-02

PRODUCT CODE GENERATOR

Select your configuration preferences below to generate your product code.

A2106 — 1500 — 200W — EM – Emergency Function
Series Length (mm) Wattage Options
A2106 600 80W NM – Standard
900 120W ND – 1-10V Dimming
1200 150W DA – Dali Dimming
1500 200W
