A2002 MINI LED TRI-PROOF LIGHTSD-mark, CE, RoHS

A2002 Mini LED Tri-Proof Lights are simple structured and elegant designed, using aluminum profiles to reduce weight. Two sets of installations provide customer convenience, and improve light utilization. Get all customers’ recognition and acceptance with its functional features.

Widely used in Education, Healthcare, Gyms, Industrial & Warehouse and Grocery (supermarket).

Product Display

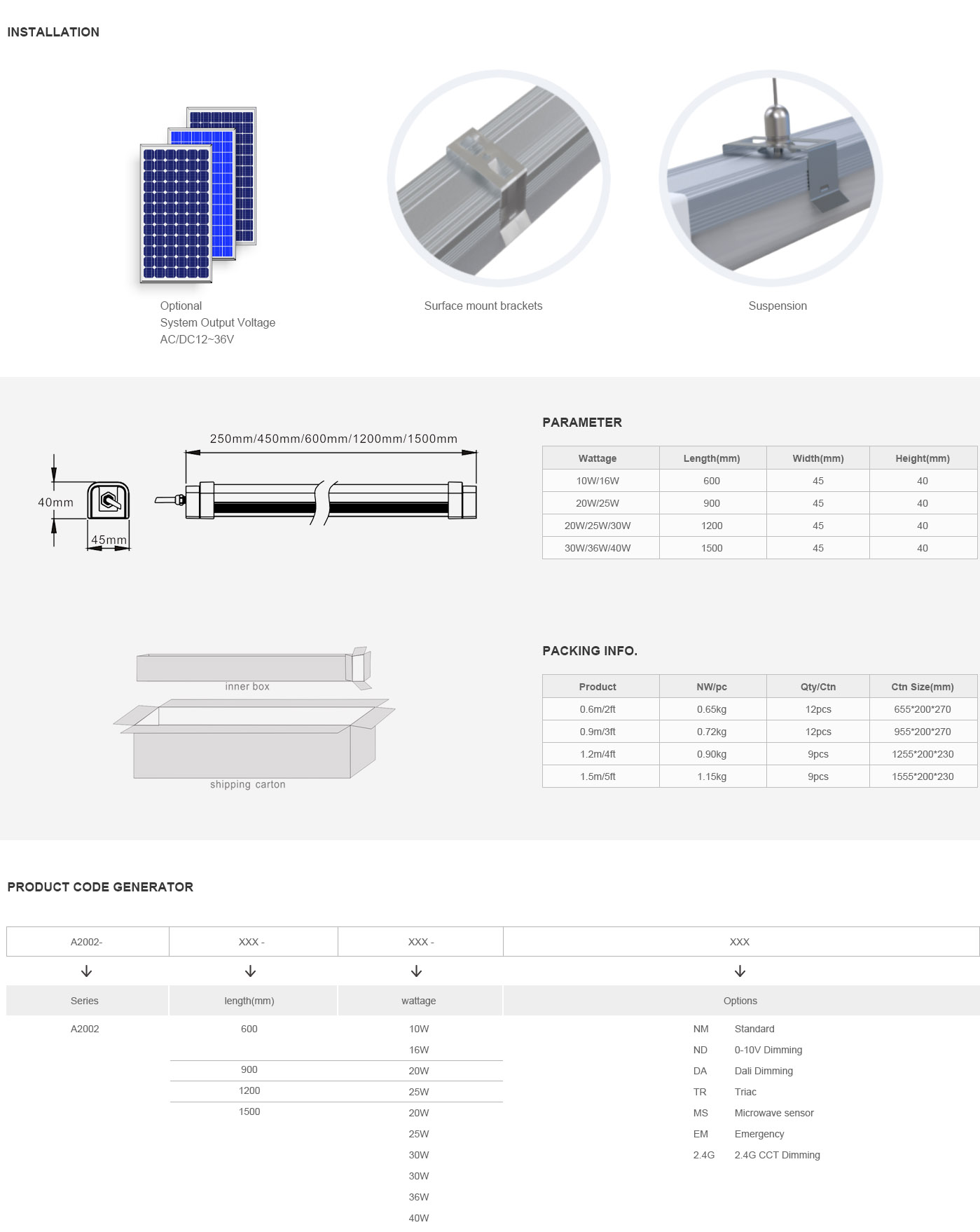

PARAMETER

DOWNLOAD

Product Tags

Construction

Dimension 2FT,3FT,4FT,5FT
Housing Aircraft Aluminum
Finish Silver (standard), White, Black
Mounting Surface mount brackets (standard)and suspension sets optional
Cover Polycarbonate:Milky cover (standard), Clear cover
IP Rating IP65
IK IK08

ELECTRICAL

Available Watts 10W, 16W, 20W, 25W, 30W, 36W,40W
Input Voltages AC200-240V 50/60Hz standard
Power Factor >0.95
THD <15%

OPTICAL & PERFORMANCE SPECIFICATIONS

LED Chips LM80/2835 Led Chips
Luminous Efficacy 120/140/160 LM/W
Lumen Output 1200-6400LM
CCT 3000/4000/5000/6000/6500K
CRI >80
Beam Angles 120°

OPTIONS

Dimming 0-10V| Triac| 2.4G CCT Dimming
Function Microwave Sensor| Emergency
Input Voltages DC12V~36V / AC12~36V

General

Lighting Even illumination; Non-glare
Lifespan 50,000HRS
Warranty 5 Years
Operating Temp -20°C ~ +45°C
Storage Temp -30°C ~ +70°C
Certifications TUV, SAA, CB, CE, RoHS,D-Mark

Parameter

Model No. Wattage Voltage CCT Lumens Dimension
A2002-600-10W 10W AC200-240V 3000~6500K 1200/1400/1600LM 600*45*40 MM
A2002-600-16W 16W AC200-240V 3000~6500K 1920/2240/2560LM 600*45*40 MM
A2002-900-20W 20W AC200-240V 3000~6500K 2400/2800/3200LM 900*45*40 MM
A2002-900-25W 25W AC200-240V 3000~6500K 3000/3500/4000LM 900*45*40 MM
A2002-1200-20W 20W AC200-240V 3000~6500K 2400/2800/3200LM 1200*45*40 MM
A2002-1200-25W 25W AC200-240V 3000~6500K 3000/3500/4000LM 1200*45*40 MM
A2002-1200-30W 30W AC200-240V 3000~6500K 3600/4200/4800LM 1200*45*40 MM
A2002-1500-30W 30W AC200-240V 3000~6500K 3600/4200/4800LM 1500*45*40 MM
A2002-1500-36W 36W AC200-240V 3000~6500K 4320/5040/5760LM 1500*45*40 MM
A2002-1500-40W 40W AC200-240V 3000~6500K 4800/5600/6400LM 1500*45*40 MM

photometrics



2002

Waiting for the update,……………..
