A2102 LINEAR LED HIGH BAY LIGHTSENEC, TUV, SAA, CB, UL & cUL, DLC, CE, RoHS

A2102 LED Linear High Bay is made of heavy-duty anodized, extruded aluminum so it can handle whatever you can dish out. The finely-engineered fixture dissipates heat and keeps the LEDs inside cool and bright for years and years.

Widely used in Airport, Auto Dealership, Education, Healthcare, Distribution, Gymnasiums, Industrial &Warehouse, Recreation & Public Venues.

Product Display

PARAMETER

DOWNLOAD

Product Tags

Construction

Dimension 2FT,3FT,4FT,5FT
Housing Aircraft Aluminum
Finish Silver (standard), White, Black
Mounting Surface mount brackets (standard),Wall mount and suspension sets optional
Cover Polycarbonate:Milky cover (standard), Clear cover
IP Rating IP65
IK IK10

ELECTRICAL

Available Watts 60W, 80W, 100W, 120W, 150W, 200W,250W
Input Voltages AC100-240V 50/60Hz standard
Power Factor >0.95
THD <15%

OPTICAL & PERFORMANCE

LED Chips LM80/2835 Led Chips
Luminous Efficacy 120/140/160 LM/W
Lumen Output 7200-40000LM
CCT 3000/4000/5000/6000/6500K
CRI >80
Beam Angles 120°

OPTIONS

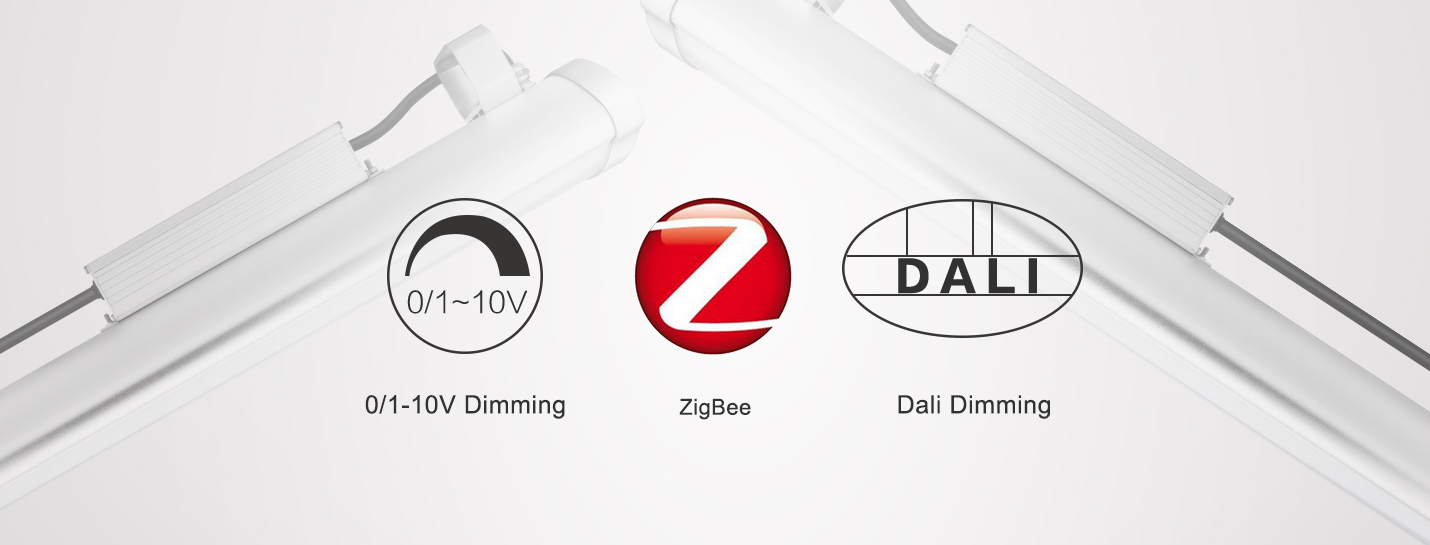

Dimming 0-10V| Dali Dimming
Function Microwave Sensor| Emergency
Input Voltages AC200~240V

General

Lighting Even illumination; Non-glare
Lifespan 50,000HRS
Warranty 5 Years
Operating Temp -20°C ~ +45°C
Storage Temp -30°C ~ +70°C
Certifications ENEC,TUV, SAA, CB, CE, RoHS

Parameter

Model No. Wattage Voltage CCT Lumens Dimension
A2102-600-60W 60W AC100-240V 3000~6500K 1200/1400/1600LM 600*150*68 MM
A2102-600-80W 80W AC100-240V 3000~6500K 1920/2240/2560LM 600*150*68 MM
A2102-900-100W 100W AC100-240V 3000~6500K 2400/2800/3200LM 900*150*68 MM
A2102-900-120W 120W AC100-240V 3000~6500K 3000/3500/4000LM 900*150*68 MM
A2102-1200-150W 150W AC100-240V 3000~6500K 2400/2800/3200LM 1200*150*68 MM
A2102-1500-200W 200W AC100-240V 3000~6500K 3000/3500/4000LM 1500*150*68 MM
A2102-1500-250W 2500W AC100-240V 3000~6500K 3600/4200/4800LM 1500*150*68 MM
